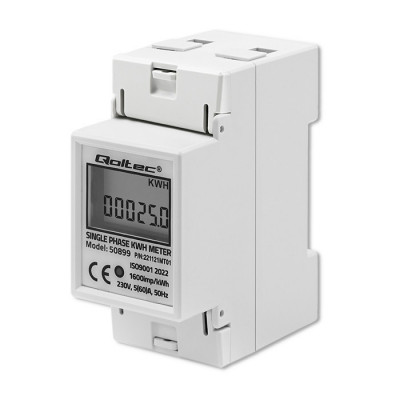

Qoltec Single phase electronic energy consumption meter | 230 V | LCD | 2P | DIN rail
The DIN-rail mount single-phase two-wire electronic energy consumption meter is an ideal device for indicating AC consumption. The LCD display indicates the value of consumed energy converted from the number of pulses. In-phase energy consumption is indicated by an LED measurement indicator.
Consegne Rapide e Sicure con i migliori Corrieri Internazionali
Advertising [Product3rdColumn]
Politiche per la sicurezza
Clicca per vedere
Clicca per vedere
Politiche per le spedizioni - Termini e Condizioni
Clicca per vedere
Clicca per vedere
Politiche per i resi
Clicca per Vedere
Clicca per Vedere
The electronic energy meter allows the level of electricity consumption to be monitored by single-phase consumers supplied with 230V AC at a frequency of 50Hz.. The device has an LED which indicates energy consumption and an LCD display which indicates the value of consumed energy converted on the basis of the number of pulses with a 1600imp/kWh pulsing constant . An additional advantage of the product is its very easy operation and its small size will certainly make the installation of the device easier. The meter is designed for mounting on a DIN 35 rail.
50899
5901878508993
- Net weight [kg]
- 0.109
- Warranty
- 24 month
- Frequency
- 50 Hz
- Type
- Single phase
- Additional information
- Compliant with DIN EN5002
Measurement of active energy - Producer
- Qoltec
- Dimensions (D/L x W x H)
- 66 x 35 x 83 mm
- Package depth / length [mm]
- 40
- Package width [mm]
- 92
- Package height [mm]
- 72
- Gross weight [kg]
- 0.122
- Certificate
- CE
- Rated voltage
- 230 V
- Rated current
- 5(60)A
- Mounting method
- DIN TH35
- IP Rating
- IP44
- Display
- LCD 5+1
- Number of poles
- 2P
- Precision
- Class 1.0
- Inrush current
- 0.4%Ib
- Insulation capacity
- AC voltage 4kV for minute, 1.2/50us waveform impulse voltage 6kV.
