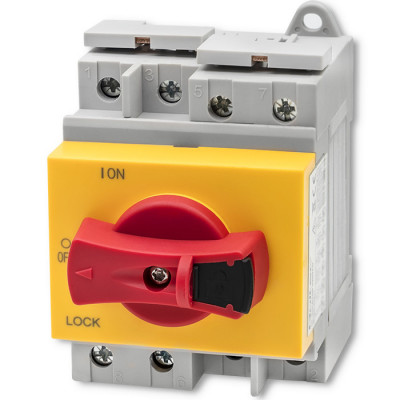

Qoltec DC isolator with locking function | Main switch | 1200V | 32A | 8kV | 4P
The DC isolation disconnect switch is an electrical safety device used, among other things, to manually disconnect PV panels for installation, repair or maintenance. It has a locking device in the off position. Constructed of silver alloy with low resistivity, good conductivity, and resistance to high temperature and oxidation. Connectors made of galvanised copper. Can be mounted in a switch box.
Consegne Rapide e Sicure con i migliori Corrieri Internazionali
Advertising [Product3rdColumn]
Politiche per la sicurezza
Clicca per vedere
Clicca per vedere
Politiche per le spedizioni - Termini e Condizioni
Clicca per vedere
Clicca per vedere
Politiche per i resi
Clicca per Vedere
Clicca per Vedere
The DC circuit breaker from Qoltec, also known as an isolating disconnect switch, acts as a so-called main circuit breaker. It prevents short circuits, overloads and damage to the installation. It is used to safely disconnect the power supply and reconnect the DC circuits, i.e. to disconnect PV modules from the inverter, for example, or to stop the inverter in the event of a fault, or to isolate the circuit when carrying out work in switchgear.
52611
5901878526119
- Net weight [kg]
- 0,264
- Warranty
- 24 month
- Material
- PC + Silver alloy contact + copper fittings
- Operating temperature
- -40˚C ~ +85˚C
- Type
- Isolator DC
- Additional information
- Flame retardant PC shell
- Usage
- Photovoltaics
Distribution boards - Producer
- Qoltec
- Dimensions (D/L x W x H)
- 89 x 62 x 95 mm
- Package depth / length [mm]
- 68
- Package width [mm]
- 103
- Package height [mm]
- 99
- Gross weight [kg]
- 0,292
- Certificate
- CE
- Rated voltage
- 1200V
- Rated current
- 32A
- Type of assembly
- Distribution box, DIN rail35
- Surge current
- 8kV
- IP Rating
- IP20
- Insulation material
- PPO
- Number of poles
- 4
