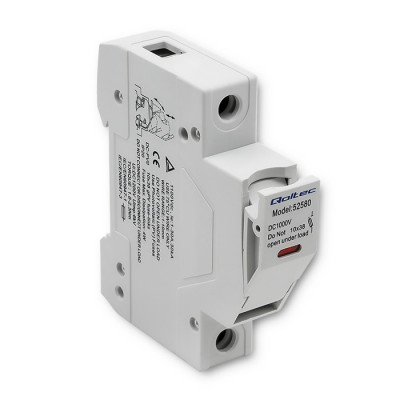

Qoltec Fuse base with diode + DC fuse | 1P|1000V |15A |10x38 |solar
Qoltec's 1000V fuse will work well as overcurrent and short circuit protection. The set includes a fuse housing with a diode and a replaceable 15A insert with dimensions of 10x38 mm . For use in photovoltaic systems.
Consegne Rapide e Sicure con i migliori Corrieri Internazionali
Advertising [Product3rdColumn]
Politiche per la sicurezza
Clicca per vedere
Clicca per vedere
Politiche per le spedizioni - Termini e Condizioni
Clicca per vedere
Clicca per vedere
Politiche per i resi
Clicca per Vedere
Clicca per Vedere
Every circuit of an electrical installation must be properly protected from the effects of overloads and short circuits, so it is mandatory to use the appropriate protection. One such device is a DC fuse, which helps remove the current when the current in the circuit is too high. It effectively eliminates the risk of damage to the installation caused by a temporary overvoltage or short circuit, which can damage the network and connected equipment.
52580
5901878525808
- Net weight [kg]
- 0.084
- Warranty
- 24 miesiące
- Material
- PA66, cooper
- Operating temperature
- -10˚C ~ +85˚C
- Usage
- Photovoltaic, solar panels
- Fuse
- YES
- Producer
- Qoltec
- Dimensions (D/L x W x H)
- 75 x 85 x 19 mm
- Gross weight [kg]
- 0.085
- Certificate
- CE
- Rated voltage
- 1000V
- Rated current
- 15A
- Type of assembly
- Szyna TH35
- IP Rating
- IP20
- Class
- II
- Number of poles
- 1P
- Relative humidity
- +20℃≤95% +40℃≤50%
