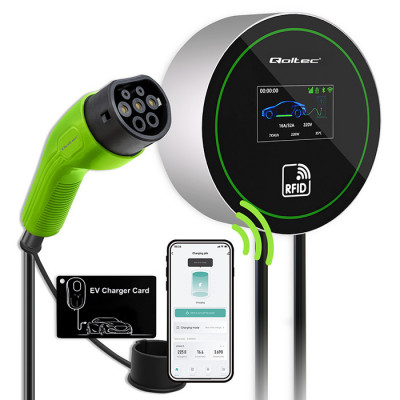

Qoltec EV Charging Station 2-in-1 Type2 | 22kW | Wi-fi| LCD | RFID | 3 phases | Wallbox | 5m
The 22kW 3-phase EV charging station, equipped with an RFID card reader and LCD screen, enables fast and convenient charging of EVs with a European outlet. With high power and 32A per phase, the user can enjoy a full charge of the vehicle in just a few hours. The user can monitor and manage the charging process from the mobile app. The station is compatible with many electric vehicle models, making it a versatile and reliable choice for both residential and commercial use.
Consegne Rapide e Sicure con i migliori Corrieri Internazionali
Advertising [Product3rdColumn]
Politiche per la sicurezza
Clicca per vedere
Clicca per vedere
Politiche per le spedizioni - Termini e Condizioni
Clicca per vedere
Clicca per vedere
Politiche per i resi
Clicca per Vedere
Clicca per Vedere
Fast charging for electric cars with European socket
Don't let the low charge of your battery prevent you from using your electric vehicle. With the help of Qoltec's 3 phase charging station, you can charge your car's battery 10 times faster. With 32A per phase, charging is fast and efficient. The device offers options for mounting on a wall or on a freestanding post, making it ideal for both home garages and commercial parking lots.
- Colour
- Black, green
- Cable length
- 5m
- Net weight [kg]
- 6.300
- Warranty
- 24 month
- Frequency
- 50Hz
- Plug type
- 32A
- Package
- Box
- Conductor cross-sectional area
- 5*6mm² + 1*0.5mm²
- Type
- 2
- Compatibility
- TYPE 2 compatible with most electric cars in Europe
- Additional information
- Dedicated application Smart life
- Safety
- Over voltage protection
Over current protection
Ungrounded protection
Temperature monitoring
Short circuit protection
Leakage protection - Package contents
- 1 x EV charger
1 x Wall mounting bracket for charger
1 x Mounting screws
1 x User manual
2 x RFID card - Notices
- Only use the charger if the mains supply is fitted with a residual current circuit breaker
Do not attempt to repair the appliance yourself
Please do not use the device with an additional power supply - Producer
- Qoltec
- Dimensions (D/L x W x H)
- 250 x 250 x 80 ( charging station), 210 x 70 x 60 mm ( charger )
- Package depth / length [mm]
- 380
- Package width [mm]
- 570
- Package height [mm]
- 160
- Gross weight [kg]
- 7.200
- Certificate
- CE
- Working temperature
- -25˚C ~ +45˚C
- Rated voltage
- 400VAC (L1 + L2 + L3 + N + PE)
- Maximum power
- 22kW
- IP Rating
- IP65
- Display
- LCD 4.3''
- Operating current
- 32A (max)
- Insulation material
- TPU/TPE
- Number of phases
- 3
- Diameter of the cable
- 16.8mm
