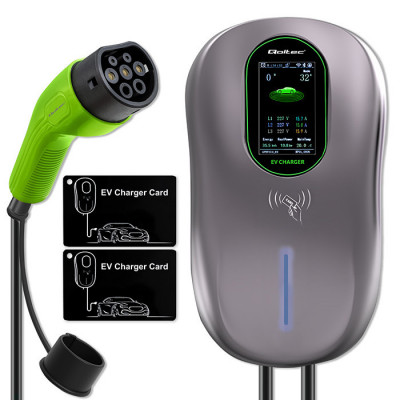

Qoltec EV Charging Station 2-in-1 Type2 | 22kW | LCD | 2 EV cards | 3 phases | Wallbox | 5m
zoom_out_map
chevron_left chevron_right


Consegne Rapide !

Nuovo

Qoltec EV Charging Station 2-in-1 Type2 | 22kW | LCD | 2 EV cards | 3 phases | Wallbox | 5m

The 22kW 3-phase EV charging station, equipped with an EV card reader and LCD screen, is compatible with:- the EV hotel system 52428- a set of 5 EV cards 52429. With these components, you can expand your electric car charging network with any number of charging stations and user cards. One programmer is enough to programme an unlimited number of cards. The device enables fast and convenient charging of electric vehicles with a European socket. Thanks to its high power and 32A per phase, customers of commercial spaces such as hotels, car parks, restaurants and shopping centres can enjoy a fully charged vehicle after just a few hours. The station is compatible with many models of electric vehicles.

Consegne Rapide e Sicure con i migliori Corrieri Internazionali


Advertising [Product3rdColumn]

Politiche per la sicurezza
Clicca per vedere
Politiche per le spedizioni - Termini e Condizioni
Clicca per vedere
Politiche per i resi
Clicca per Vedere
EV

Fast charging for electric cars with European socket

Don't let the low charge of your battery prevent you from using your electric vehicle. With the help of Qoltec's 3 phase charging station, you can charge your car's battery 10 times faster. With 32A per phase, charging is fast and efficient. The device offers options for mounting on a wall or on a freestanding post, making it ideal for both home garages and commercial parking lots.

QT52431
5901878524313
Colour
Black, green
Cable length
5m
Net weight [kg]
5.000
Warranty
24 month
Frequency
50Hz/60Hz
Plug type
32A
Package
Box
Conductor cross-sectional area
5*6mm² + 1*0.5mm²
Type
2
Compatibility
TYPE 2 compatible with most electric cars in Europe
Additional information
Dedicated application
Safety
Over voltage protection
Over current protection
Ungrounded protection
Temperature monitoring
Short circuit protection
Leakage protection
Package contents
1 x EV charger
1 x Wall mounting bracket for charger
1 x Mounting screws
1 x User manual
2 x card
No software included
Notices
Only use the charger if the mains supply is fitted with a residual current circuit breaker
Do not attempt to repair the appliance yourself
Please do not use the device with an additional power supply
Producer
Qoltec
Dimensions (D/L x W x H)
220 x 385 x 130 mm ( charging station), 210 x 70 x 60 mm ( charger)
Package depth / length [mm]
320
Package width [mm]
480
Package height [mm]
245
Gross weight [kg]
6.200
Certificate
CE
Working temperature
-25˚C ~ +45˚C
Rated voltage
220VAC-480VAC
Maximum power
22kW
IP Rating
IP54
Display
LCD 4.3''
Operating current
32A (max)
Insulation material
TPU/TPE
Number of phases
3
Diameter of the cable
16.8mm
