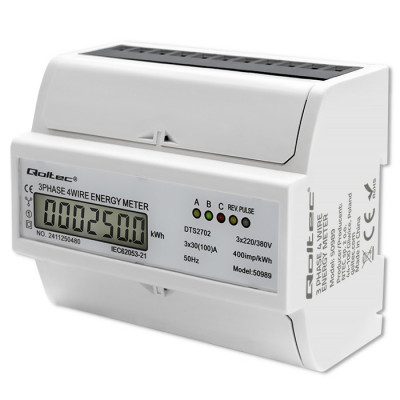

Qoltec Three-phase Bidirectional Electronic Meter | DIN Rail Energy Meter | 400V | 100A | LCD | 4P
Consegne Rapide e Sicure con i migliori Corrieri Internazionali
Advertising [Product3rdColumn]
Clicca per vedere
Clicca per vedere
Clicca per Vedere
Powered by AC 230V/400V, for DIN rail35
Electronic meter enables real-time monitoring of the level of electricity consumption by three-phase receivers supplied with 230V/400V alternating current 50Hz frequency. Operating at an inrush current of 0.4%Ib and 230V AC at 50Hz, the meter is extremely efficient and stable. The device has an LED indicator, which indicates energy consumption, the diode flashes at a frequency that depends on the energy consumed with a pulsing constant of 400imp/kWh. LCD display, indicates the value of energy consumed converted based on the number of pulses. The meter is designed for mounting in switchboards on DIN rail TH35.
- Colour
- White
- Net weight [kg]
- 0.384
- Warranty
- 24 month
- Frequency
- 50 Hz
- Operating temperature
- -20˚C ~ +55˚C
- Package
- Box
- Type
- Three phase
- Additional information
- Measurement of active energy consumption by 3-phase consumers
Compliant with DIN EN5002 - Package contents
- 1 x Energy meter
1 x User manual - Producer
- Qoltec
- Dimensions (D/L x W x H)
- 65 x 122 x 100 mm
- Package depth / length [mm]
- 100
- Package width [mm]
- 135
- Package height [mm]
- 85
- Gross weight [kg]
- 0.426
- Certificate
- CE
- Rated voltage
- 3 x 220/380V
- Rated current
- 3 x 30(100)A
- Mounting method
- DIN TH35
- Display
- LCD 6+1
- Signalization
- LED diode
- Number of poles
- 4P
- Precision
- Class 1.0
- Inrush current
- 0.4%Ib
- Insulation capacity
- AC voltage of 4kV for 1minute, 1.2/50us pulse voltage waveform of 6kV
