Shuttle ZKUS-PDC01 PDC01 DC-IN terminal block connector for Shuttle BPCAL02

Shuttle offers a wide range of optional accessory products for their Box-PC series. Usually, the Box-PC is powered with 19 V DC voltage from the supplied power adapter, whereby the 5.5/2.5 mm DC plug of the power adapter is connected to the DC input of the Box-PC.

With the optional accessory VOL01, the permissible operating voltage is extended to 9 - 36 V DC so that other voltage sources (e.g. 12V or 24V) can also be used. The Box PC BPCAL02 can also be equipped with the optional accessory PDC01 which provides a fixed screw connection for the cables of an external power source.
Note: a DC power cable is not included

Compatibility and use
Compatible with Shuttle Box-PC BPCAL02.
(not compatible with BPCWL02)

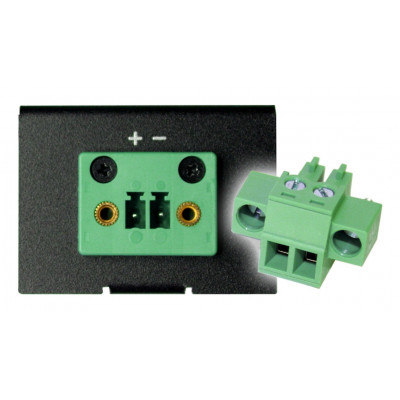

PDC01 consists of a bracket with terminal with two screwing connection, which is installed on the front of the Box PC. Here you can connect a two-wire cable of an external power source.For information on installation, please refer to the PDF specification of PDC01.
Note: the external power button and the required cable is not included
